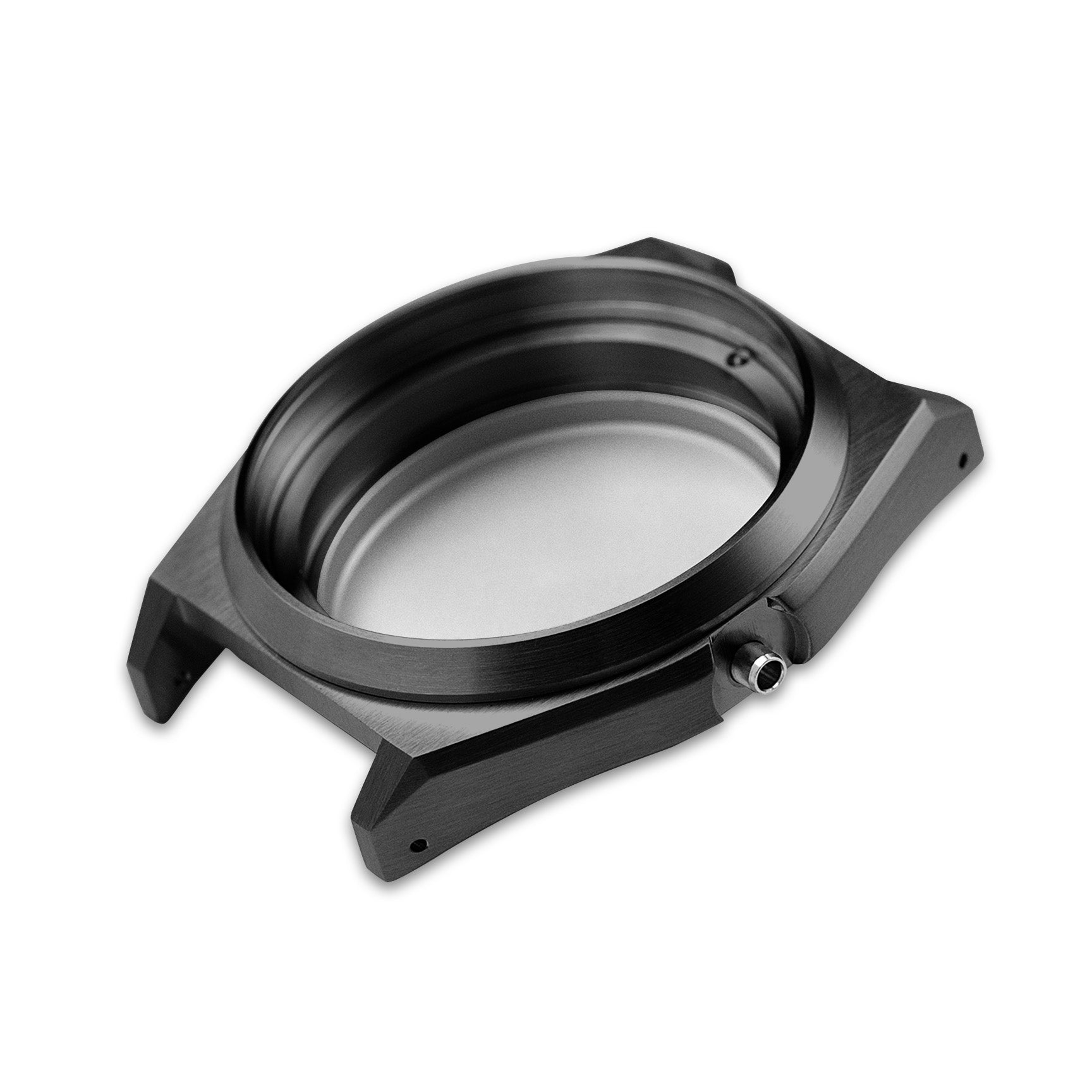

Case - SRPE S5 Vintage - Full Brushed PVD Black (With Case Back)

The S5 Vintage case is a modern reinterpretation of a retro Series 5 model from the 1980s, fusing vintage appeal with modern engineering. The design focuses on creating a strong architectural structure defined by large flat surfaces, angular planes, and crisp edges.

The straightened areas between the lugs are perfect for flat-end straps, enhancing both the integrated look and overall adaptability. Multi-faceted lugs add depth and visual interest, elevating the case's geometric design language.

The facets of the watch case are thoughtfully angled to enhance depth and definition, capturing light dynamically to create a striking visual impact. These designs result in a case that is both bold and refined, balancing retro charm with modern aesthetics.

Specifications
Material - 316L Steel
Bezel Finishing - Brushed
Lugs Finishing - Brushed
Case Finishing - Brushed top; Brushed sides
Lugs Design - With drilled holes
Case Back Finishing - Brushed steel

Dimensions
Diameter - 39 mm (excluding crown)
Lug to Lug - 45 mm
Lug width - 20 mm
Wears similar to original 5 SRPE series on the wrist
Click here for size comparison with other cases

Application
All parts (except straps and bracelets) interchangeable with
- 5 SRPE 51, 53, 55, 57, 61, 63, 65, 67, 69
Suitable movements
- 4R36, NH35, NH36, NH34 GMT (requires double dome crystal)
Suitable dials and hands
- SKX007, 5 SRPD, 5 SRPE series, etc
- All DLW dials and hands

Special note
Please use the custom crystal gasket provided. The original 5 SRPE crystal gasket is incompatible due to a slight increase in bezel height to accommodate GMT mods.

Includes
Case Back x 1 pc
Case Back Gasket x 1 pc
Crystal Gasket x 1 pc
